Fully Automatic Silage Pressing & Packing Machine
Corn Silage · Beet Pulp · Ration Feed · Grass Silage · Fruit Pulp · Biomass
A high-capacity, fully automatic system designed to press and pack silage and coarse bulk materials into compact, stackable packages with minimal labor.
This fully automatic pressing and packing machine is engineered to process silage and other coarse bulk materials into uniform, stackable packages. By combining PLC-controlled automation with a reinforced press chamber and adjustable hydraulic pressure, the system delivers consistent package quality at high production capacities.
The machine supports a wide range of materials including corn silage, beet pulp, ration feed, grass silage, fruit pulp, and biomass products such as wood shavings. Its modular design minimizes maintenance time and reduces operational downtime, while standardized package dimensions improve storage efficiency and transportation planning.
Designed for continuous industrial operation, the system helps producers lower labor dependency, optimize warehouse space, and reduce overall packaging costs.
| General Dimensions | |
| Total Length | : 13,000 mm |
| Width | : 2,600 mm |
| Height | : 3,700 mm |
| Machine Weight | : 7,800 kg |
| Capacity & Performance | |
| Pressed Package Capacity | : 360 packages/hour |
| Pressed Product Capacity | : 7–18 tons/hour |
| Press-Free Package Capacity | : 480 packages/hour |
| Press-Free Product Capacity | : up to 24 tons/hour |
| Package Weight Range | : 10–50 kg |
| Weight Tolerance | : ±1% |
| Package Dimensions | |
| Package Width | : 340–350 mm |
| Package Height | : 170–180 mm |
| Package Length | : 300–600 mm |
| Power & Utilities | |
| Installed Power | : 50 kW |
| Voltage | : 3 Phase |
| Compressed Air Requirement | : 6–8 bar |
Fully automatic PLC-controlled operation
User-friendly operator screen

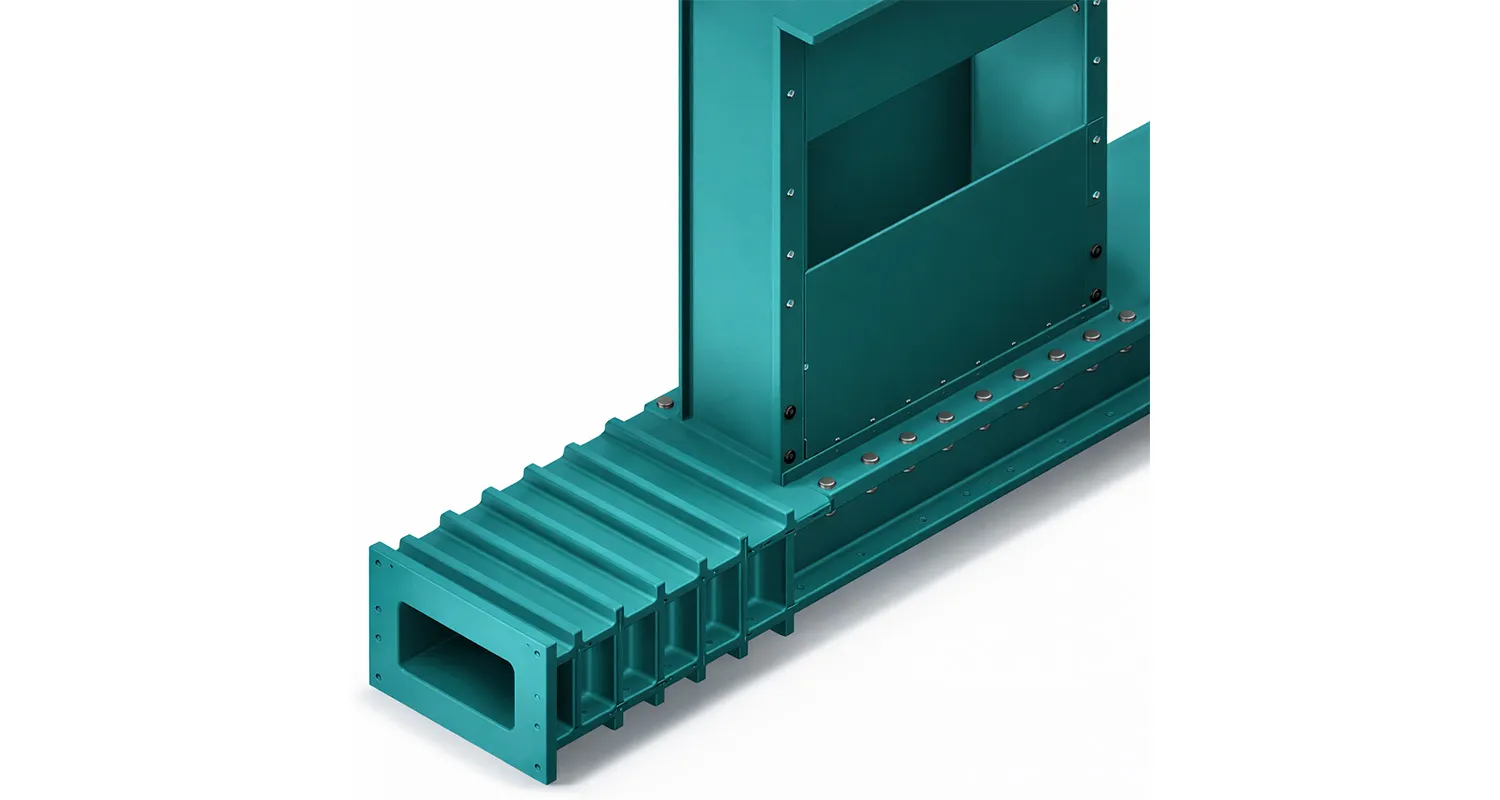

Reinforced steel press chamber
Adjustable hydraulic pressure (20–300 bar)

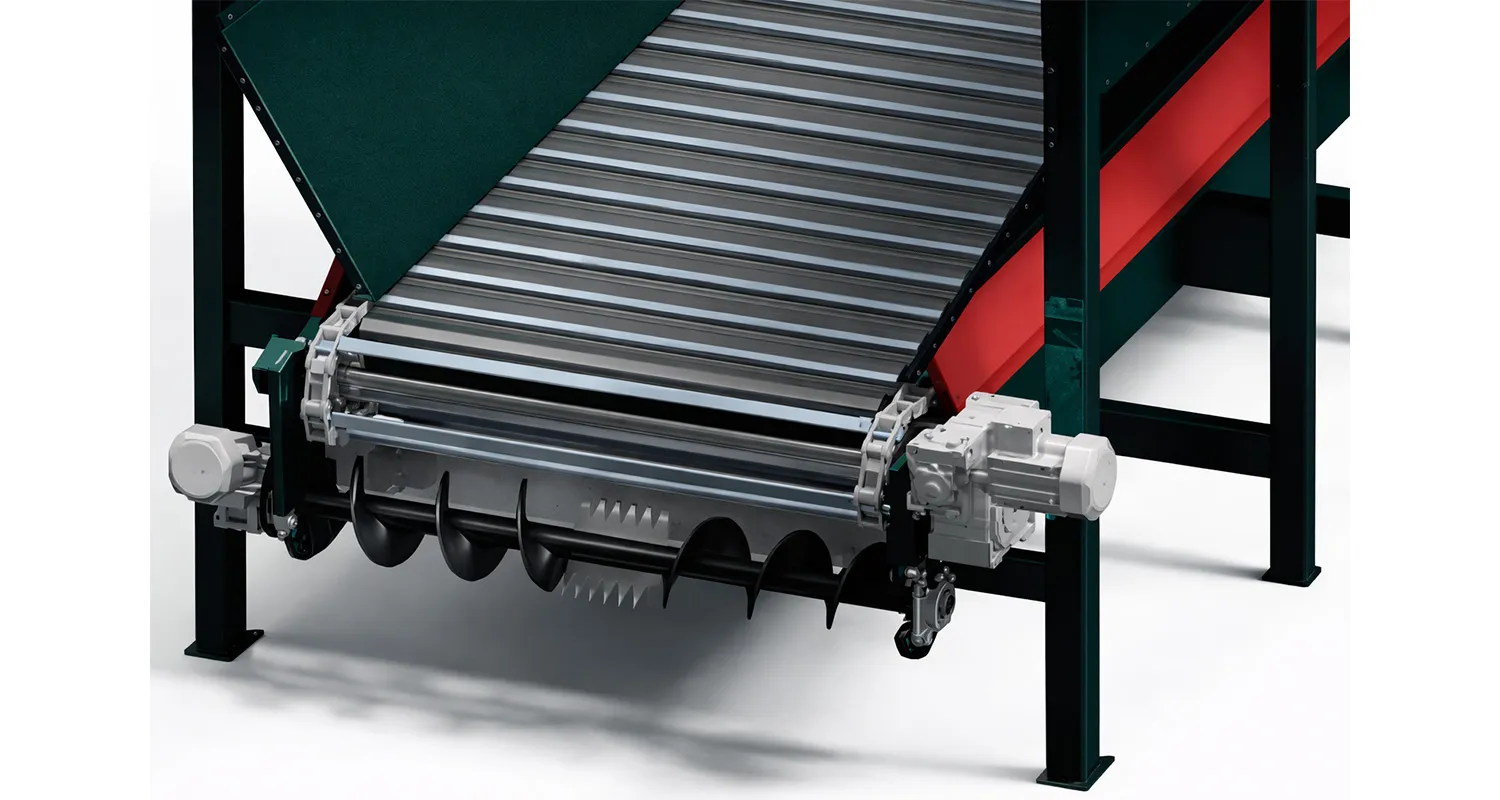

Heavy-duty concealed chain system
Modular design for fast maintenance
High-speed, continuous production capability
loading..
Is the machine suitable for different types of silage?
Yes. The machine is designed to process corn silage, grass silage, and various silage-based feed materials with adjustable pressure settings.
How many operators are required to run the machine?
The fully automatic system can be operated by a single operator.
Can package size and weight be adjusted?
Yes. Package weight and length can be adjusted within the specified ranges to meet operational needs.
Is technical support available after installation?
Yes. Technical support and spare parts service are available after installation.
